Product Description
Suffolk Strap Style Shutter Hinge with Plate Mount made by Lynn Cove Foundry & Forge. This shutter has a strap style hinge on shutter instead of the traditional "L" hinge. Available in Stainless Steel or Galvanized Steel. Hinges are powder coated with a nice satin Black finish. Ideal to be used with any wooden shutter. We recommend using the Stainless Steel in harsher climates, near saltwater and within 20 miles of coastline.

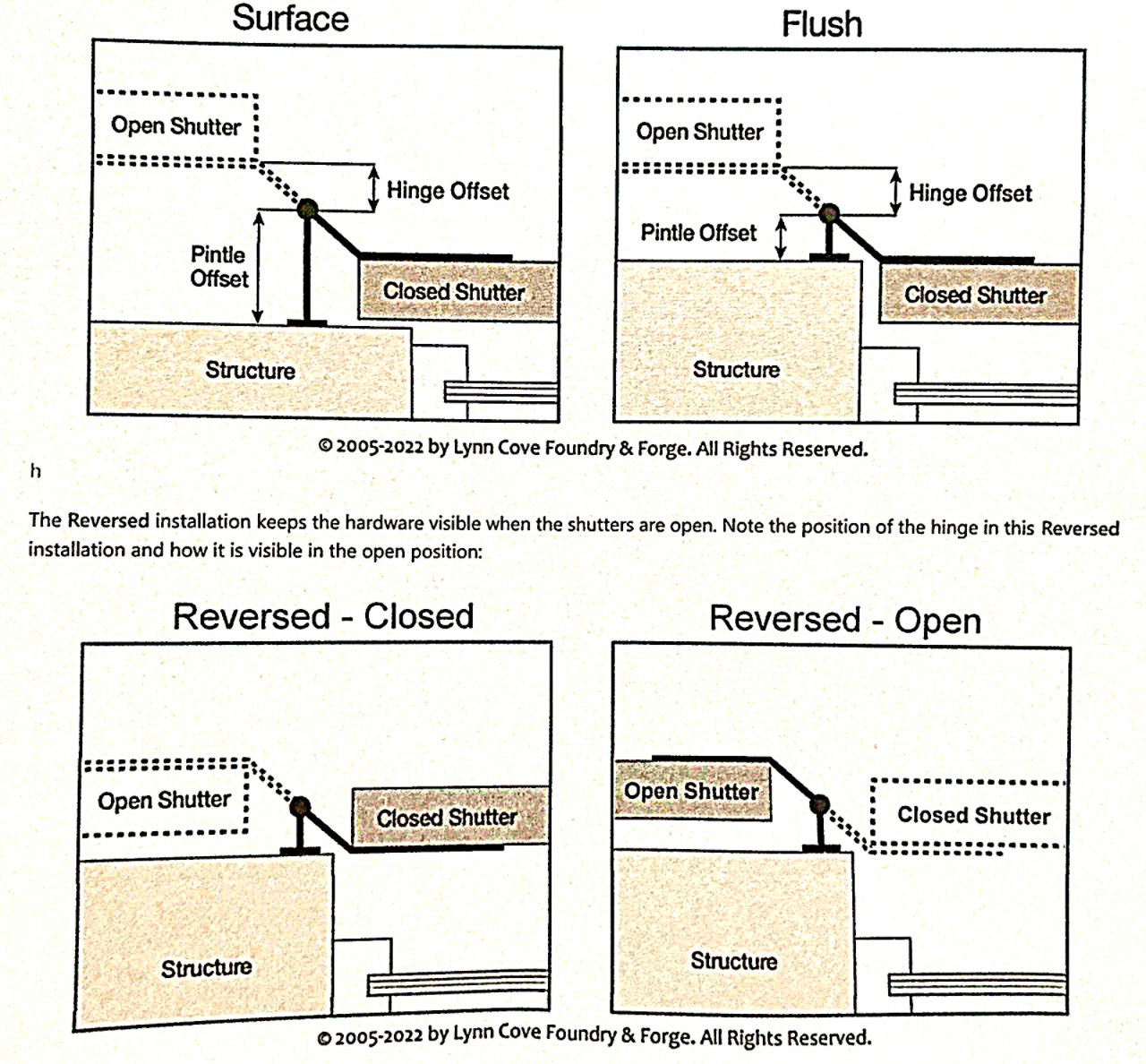

Choose either Surface Mount or Flush Mount:
- Surface Mount has a 1/2" hinge offset and 1-3/4" pintle offset.
- Flush Mount has a 3/4" hinge offset and 3/4" Pintle Offset.
Comes with 4 pairs of hinges to hang 2 shutters for each window. Stainless Steel screws are included. This hinge is not stationary, when installed it is a working hinge.
- Hangs 2 shutters, enough to complete 1 window
- Holds up to a 75 lb. shutter
- Stainless Steel Wood Screws
- Satin Black finish
- 5-Year Warranty on shutter hinge
Dimensions:
- Strap Hinge arm dimensions: 1-1/2" x 11-7/8"
- Pintle Plate size: 1-5/8" wide x 3-5/8" long
- Pintle Pin Diameter: 1/2"
- Surface Mount: 1/2" hinge offset and 1-3/4" Pintle offset
- Flush Mount: 3/4" hinge offset and 3/4" Pintle offset
Set Includes:
- 4 Hinges
- 4 Pintles with Plate
- 12 Panhead Phillips Black coated Stainless Steel #10 x 3/4" screws for strap hinges
- 12 Panhead Phillips Black coated Stainless Steel #10 x 1-1/2" screws for Pintle Plates
Please NOTE: Stainless Steel is recommended for coastline and other harsh weather climates. Galvanized Steel is recommended for use inland at least 20 miles from coastline.
