Suffolk L Style Plate Mount Shutter Hinge Set

$109.00 - $155.00
(No reviews yet) Write a Review
SKU:
Suffolk Shutter Plate Mount
Availability:
FREE SHIPPING | Usually ships in 2 to 4 business days.
Adding to cart… The item has been added

Suffolk Style Shutter Hinge with Plate Mount made by Lynn Cove Foundry & Forge.  Available in Stainless Steel or Galvanized Steel.  Hinges are powder coated with a nice satin Black finish.  Ideal to be used with any wooden shutter.  We recommend using the Stainless Steel in harsher climates, near saltwater and within 20 miles of coastline.

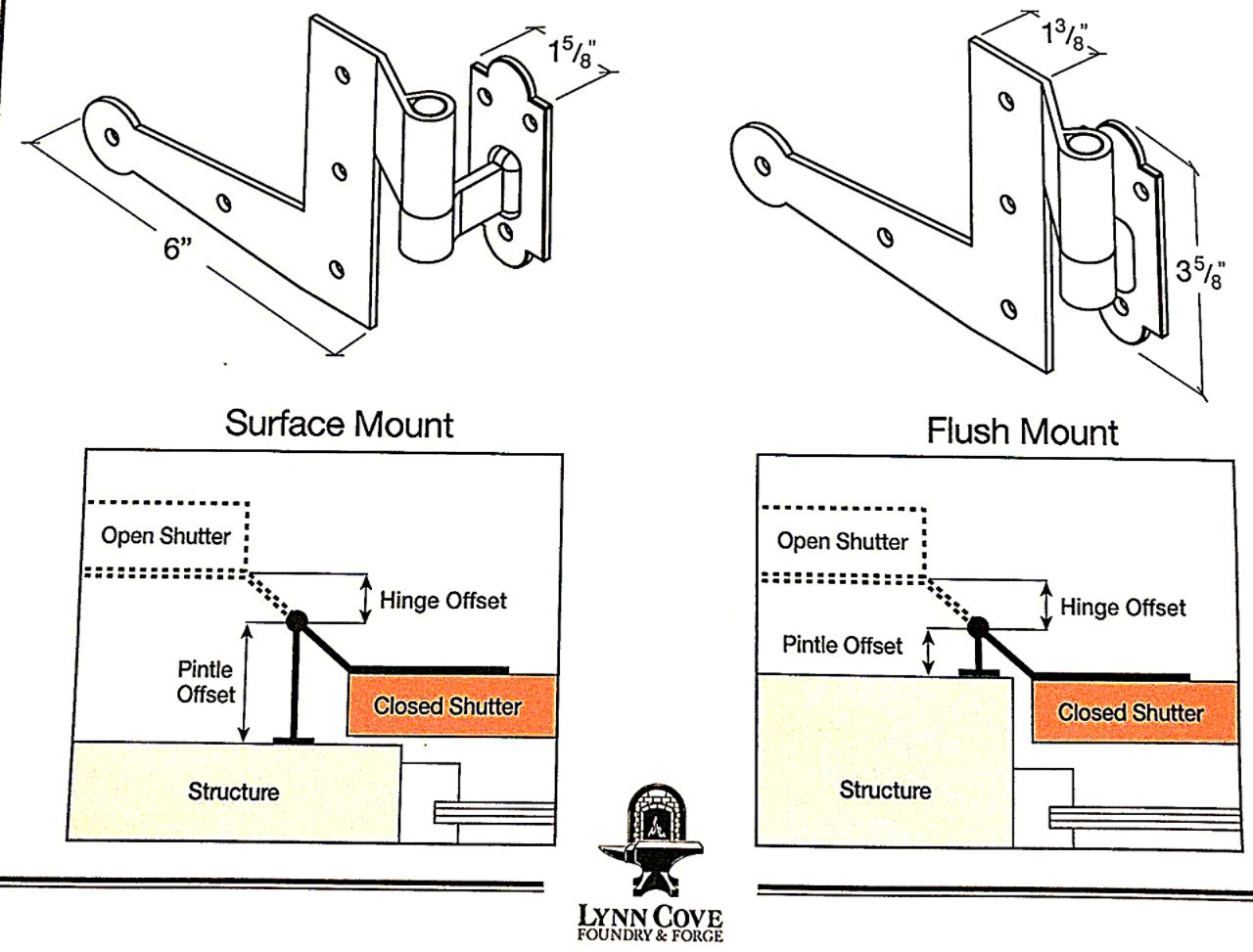

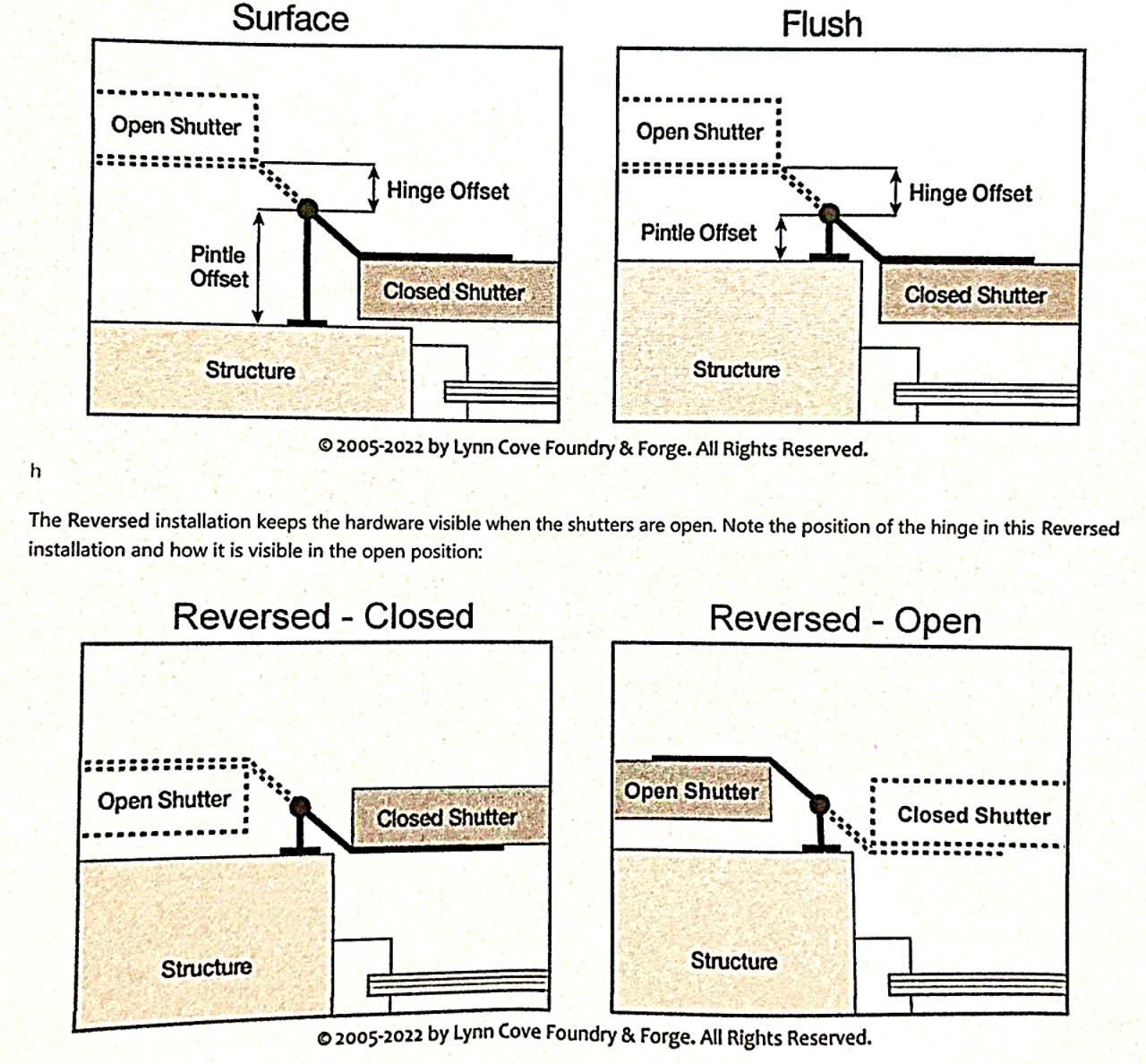

Choose either Surface Mount or Flush Mount:



Surface Mount has a 1/2" hinge offset and 1-3/4" pintle offset.  Flush Mount has a 3/4" hinge offset and 3/4" Pintle Offset.



Comes with 4 pairs of hinges to hang 2 shutters for each window.  Stainless Steel screws are included.  This hinge is not stationary, when installed it is a working hinge.

  • Hangs 2 shutters, enough to complete 1 window
  • Holds up to a 75 lb. shutter
  • Stainless Steel Wood Screws
  • Satin Black finish
  • 5-Year Warranty on shutter hinge

Dimensions:

  • Hinge arm dimensions: 6" x 5"
  • Pintle Plate size: 1-5/8" wide x 3-5/8" long
  • Pintle Pin Diameter: 1/2"
  • Surface Mount: 1/2" hinge offset and 1-3/4" Pintle offset
  • Flush Mount: 3/4" hinge offset and 3/4" Pintle offset

Set Includes:

  • 4 Hinges
  • 4 Pintles with Plate
  • 20 Panhead Phillips Black coated Stainless Steel #10 x 3/4" screws for hinges
  • 12 Panhead Phillips Black coated Stainless Steel #10 x 1-1/2" screws for Pintles



Please NOTE: Stainless Steel is recommended for coastline and other harsh weather climates. Galvanized Steel is recommended for use inland at least 20 miles from coastline.
